Tutorial on the Simulation of the DNA Environment

Discover how to model DNA excited-state relaxation and environmental interactions using dephasing and thermalization models from Quantum Biology. This notebook explores various methods for incorporating DNA environment effects and exciton relaxation in the qDNA package. Key topics include:

• Local & Global Dephasing: Analyzing the impact of environmental noise on quantum states.

• Local & Global Thermalizing: Modeling the system’s approach to thermal equilibrium.

• Trace Distance to Equilibrium: Measuring how close the system is to its equilibrium state.

Through these examples, the notebook demonstrates techniques for simulating and analyzing DNA-related quantum phenomena in the presence of an environment.

%load_ext autoreload
%autoreload 2

# Save flag: Set to True to enable saving results (currently unused in this script)
save = False

# Verbose flag: Set to True to enable detailed logging
verbose = False

Setup

import numpy as np
import matplotlib.pyplot as plt

# --------------------------
# Installation of QuantumDNA
# --------------------------

from importlib.util import find_spec

qDNA_installed = find_spec('qDNA') is not None

if not qDNA_installed:
    %pip install qDNA
    print("Successfully installed the 'qDNA' package.")
else:
    print("Package 'qDNA' is already installed.")

if verbose:
    %pip show qDNA

from qDNA import *

# ------------------------
# Directory Setup
# ------------------------

import os

# Use the current working directory as the root
ROOT_DIR = os.getcwd()

# Define directory to save figures
SAVE_DIR = os.path.join(DATA_DIR, "my_figures")
os.makedirs(SAVE_DIR, exist_ok=True)

if verbose:
    print(f"Save directory: '{SAVE_DIR}' is ready.")

Package 'qDNA' is already installed.

Function Definitions

def pre(vis):
    if vis.loc_deph_rate:
        lindblad_type = "local dephasing"
    elif vis.glob_deph_rate:
        lindblad_type = "global dephasing"
    elif vis.loc_therm:
        lindblad_type = "local thermalizing"
    elif vis.glob_therm:
        lindblad_type = "global thermalizing"

    if lindblad_type in ["local dephasing", "global dephasing"]:
        eq_state = get_deph_eq_state(vis)
    if lindblad_type in ["local thermalizing", "global thermalizing"]:
        eq_state = get_therm_eq_state(vis)

    print(f"Number of local dephasing operators: {vis.num_c_ops}")
    print("--------------------------------")

    return eq_state

def my_plot_pop(vis, tb_site):
    eq_state = pre(vis)

    fig, ax = vis.plot_pop(tb_site, add_legend=False)
    for particle in vis.particles:
        pop_particle_op = get_pop_observable(vis.tb_basis, vis.description, particle, tb_site)
        pop_particle = np.trace(eq_state @ pop_particle_op)
        ax.axhline(y=pop_particle, color='k', linestyle='--', alpha=0.5)
        print(f"Equilibium Population {particle.capitalize()}: {round(pop_particle, 3)}")

    return fig, ax

def my_plot_coh(vis):
    eq_state = pre(vis)

    fig, ax = vis.plot_coh()
    for particle in vis.particles:
        reduced_dm = get_reduced_dm(eq_state, particle, vis.tb_basis)
        coh_particle = np.sum(np.abs(reduced_dm)).real - np.sum(np.diag(reduced_dm)).real
        ax.axhline(y=coh_particle, color='k', linestyle='--', alpha=0.5)
        print(f"Equilibium Coherence {particle.capitalize()}: {round(coh_particle, 3)}")

    return fig, ax

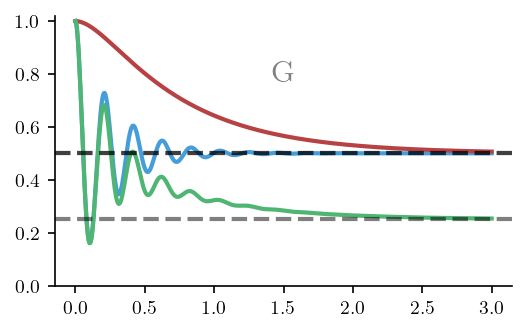

Local Dephasing

tb_sites = get_tb_sites('GC', tb_model_name='WM')
tb_site = '(0, 0)'
vis = Visualization(tb_sites, description='2P', loc_deph_rate=5, tb_model_name='WM')

fig, ax = my_plot_pop(vis, tb_site)

if save:
    fig_filename = input("Filename for Saving: ")
    plt.savefig(os.path.join(SAVE_DIR, fig_filename + '.pdf'))

Number of local dephasing operators: 6
--------------------------------
Equilibium Population Electron: 0.5
Equilibium Population Hole: 0.5
Equilibium Population Exciton: 0.25

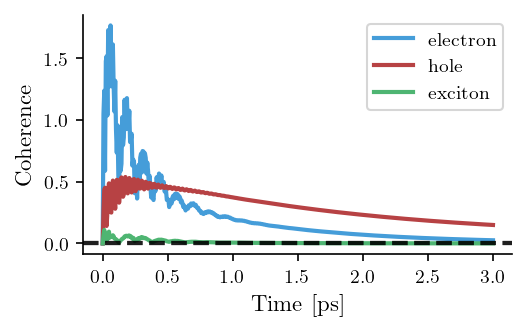

tb_sites = get_tb_sites('GC')
vis = Visualization(tb_sites, description='2P', loc_deph_rate=5, tb_model_name='ELM')

fig, ax = my_plot_coh(vis)

if save:
    fig_filename = input("Filename for Saving: ")
    plt.savefig(os.path.join(SAVE_DIR, fig_filename + '.pdf'))

Number of local dephasing operators: 12
--------------------------------
Equilibium Coherence Electron: 0.0
Equilibium Coherence Hole: 0.0
Equilibium Coherence Exciton: 0.0

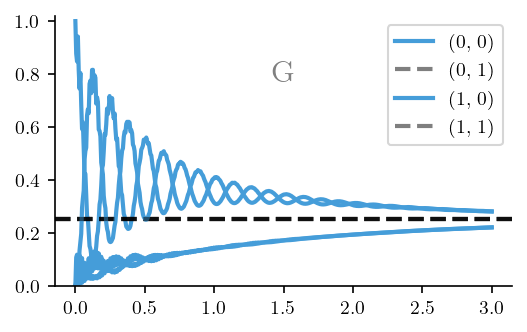

tb_sites = get_tb_sites('GC')
tb_site = '(0, 0)'
vis = Visualization(tb_sites, description='2P', particles=['electron'], loc_deph_rate=4, tb_model_name='ELM')

eq_state = get_deph_eq_state(vis)

pop_particle_dict = {}
for tb_site in vis.tb_basis:
    pop_particle_op = get_pop_observable(vis.tb_basis, vis.description, vis.particles[0], tb_site)
    pop_particle = np.trace(eq_state @ pop_particle_op)
    pop_particle_dict[tb_site] = pop_particle
    print(f"Equilibium Population {vis.particles[0].capitalize()} at site {tb_site}: {round(pop_particle, 3)}")

fig, ax = plt.subplots()
for tb_site in vis.tb_basis:
    fig, ax = vis.plot_pop(tb_site, ax=ax, fig=fig, add_legend=False)
    ax.axhline(y=pop_particle_dict[tb_site], color='k', linestyle='--', alpha=0.5)

ax.legend(vis.tb_basis)

if save:
    fig_filename = input("Filename for Saving: ")
    plt.savefig(os.path.join(SAVE_DIR, fig_filename + '.pdf'))

Equilibium Population Electron at site (0, 0): 0.25
Equilibium Population Electron at site (0, 1): 0.25
Equilibium Population Electron at site (1, 0): 0.25
Equilibium Population Electron at site (1, 1): 0.25

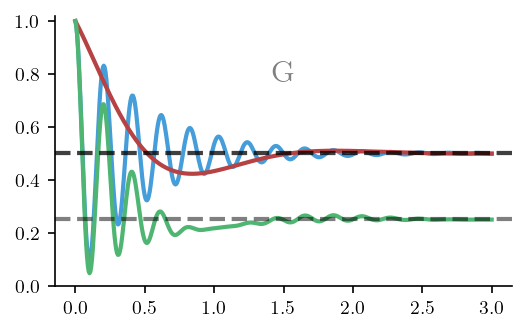

Global Dephasing

tb_sites = get_tb_sites('GC', tb_model_name='WM')
tb_site = '(0, 0)'
vis = Visualization(tb_sites, description='2P', glob_deph_rate=2, tb_model_name='WM')

fig, ax = my_plot_pop(vis, tb_site)

if save:
    fig_filename = input("Filename for Saving: ")
    plt.savefig(os.path.join(SAVE_DIR, fig_filename + '.pdf'))

Number of local dephasing operators: 4
--------------------------------
Equilibium Population Electron: 0.5
Equilibium Population Hole: 0.5
Equilibium Population Exciton: 0.25

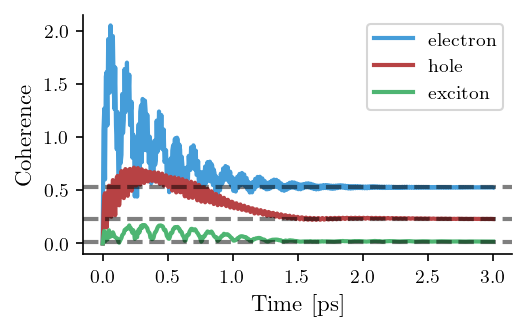

tb_sites = get_tb_sites('GC')
vis = Visualization(tb_sites, description='2P', glob_deph_rate=2, tb_model_name='ELM')

fig, ax = my_plot_coh(vis)

if save:
    fig_filename = input("Filename for Saving: ")
    plt.savefig(os.path.join(SAVE_DIR, fig_filename + '.pdf'))

Number of local dephasing operators: 16
--------------------------------
Equilibium Coherence Electron: 0.527
Equilibium Coherence Hole: 0.23
Equilibium Coherence Exciton: 0.017

Local Thermalizing

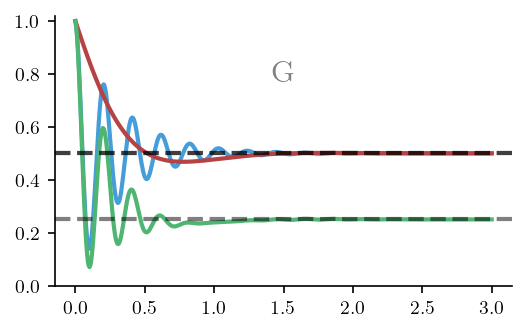

tb_sites = get_tb_sites('GC', tb_model_name='WM')
tb_site = '(0, 0)'
vis = Visualization(tb_sites, description='2P', loc_therm=True, tb_model_name='WM')

fig, ax = my_plot_pop(vis, tb_site)

if save:
    fig_filename = input("Filename for Saving: ")
    plt.savefig(os.path.join(SAVE_DIR, fig_filename + '.pdf'))

Number of local dephasing operators: 52
--------------------------------
Equilibium Population Electron: 0.5
Equilibium Population Hole: 0.5
Equilibium Population Exciton: 0.25

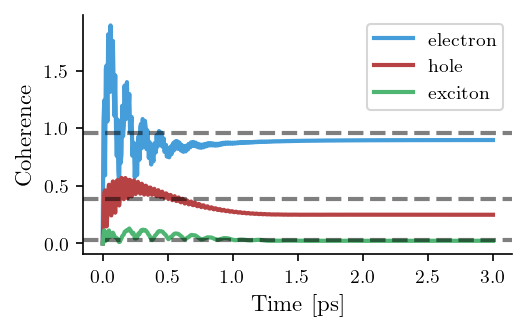

tb_sites = get_tb_sites('GC')
vis = Visualization(tb_sites, description='2P', loc_therm=True, tb_model_name='ELM')

fig, ax = my_plot_coh(vis)

if save:
    fig_filename = input("Filename for Saving: ")
    plt.savefig(os.path.join(SAVE_DIR, fig_filename + '.pdf'))

Number of local dephasing operators: 3728
--------------------------------
Equilibium Coherence Electron: 0.963
Equilibium Coherence Hole: 0.384
Equilibium Coherence Exciton: 0.027

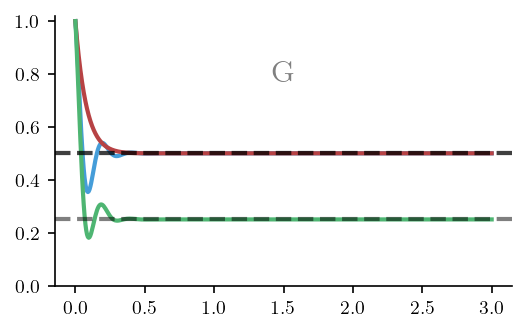

Global Thermalizing

tb_sites = get_tb_sites('GC', tb_model_name='WM')
tb_site = '(0, 0)'
vis = Visualization(tb_sites, description='2P', glob_therm=True, tb_model_name='WM')

fig, ax = my_plot_pop(vis, tb_site)

if save:
    fig_filename = input("Filename for Saving: ")
    plt.savefig(os.path.join(SAVE_DIR, fig_filename + '.pdf'))

Number of local dephasing operators: 12
--------------------------------
Equilibium Population Electron: 0.5
Equilibium Population Hole: 0.5
Equilibium Population Exciton: 0.25

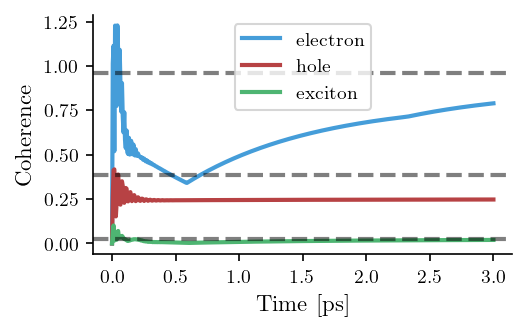

tb_sites = get_tb_sites('GC')
vis = Visualization(tb_sites, description='2P', glob_therm=True, tb_model_name='ELM')

fig, ax = my_plot_coh(vis)

if save:
    fig_filename = input("Filename for Saving: ")
    plt.savefig(os.path.join(SAVE_DIR, fig_filename + '.pdf'))

Number of local dephasing operators: 240
--------------------------------
Equilibium Coherence Electron: 0.963
Equilibium Coherence Hole: 0.384
Equilibium Coherence Exciton: 0.027

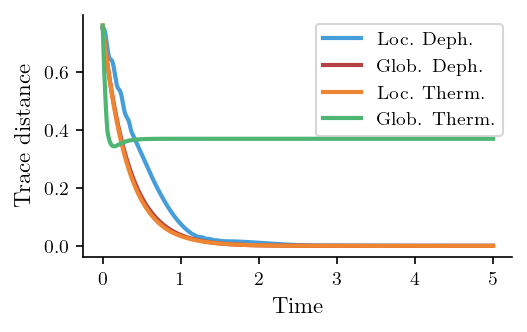

Trace Distance to the Equilibium

tb_sites = get_tb_sites('GC', tb_model_name='WM')

kwargs_loc_deph = dict(tb_model_name='WM', loc_deph_rate=3, relaxation=False, t_end=5)
kwargs_glob_deph = dict(tb_model_name='WM', glob_deph_rate=3, relaxation=False, t_end=5)
kwargs_loc_therm = dict(tb_model_name='WM', loc_therm=True, relaxation=False, t_end=5)
kwargs_glob_therm = dict(tb_model_name='WM', glob_therm=True, relaxation=False, t_end=5)

kwargs_list = [kwargs_loc_deph, kwargs_glob_deph, kwargs_loc_therm, kwargs_glob_therm]

trace_distance_list = []
for kwargs in kwargs_list:
    vis = Visualization(tb_sites, **kwargs)

    if vis.loc_deph_rate or vis.glob_deph_rate:
        eq_state = get_deph_eq_state(vis)
    if vis.loc_therm or vis.glob_therm:
        eq_state = get_therm_eq_state(vis)

    dms = vis.get_result()
    trace_distance = [ calc_trace_distance(dm.full(), eq_state) for dm in dms ]
    trace_distance_list.append(trace_distance)

fig, ax = plt.subplots()
for trace_distance in trace_distance_list:
    ax.plot(vis.times, trace_distance)

ax.legend(['Loc. Deph.', 'Glob. Deph.', 'Loc. Therm.', 'Glob. Therm.'])
ax.set_ylabel('Trace distance')
ax.set_xlabel('Time')

if save:
    fig_filename = input("Filename for Saving: ")
    plt.savefig(os.path.join(SAVE_DIR, fig_filename + '.pdf'))
